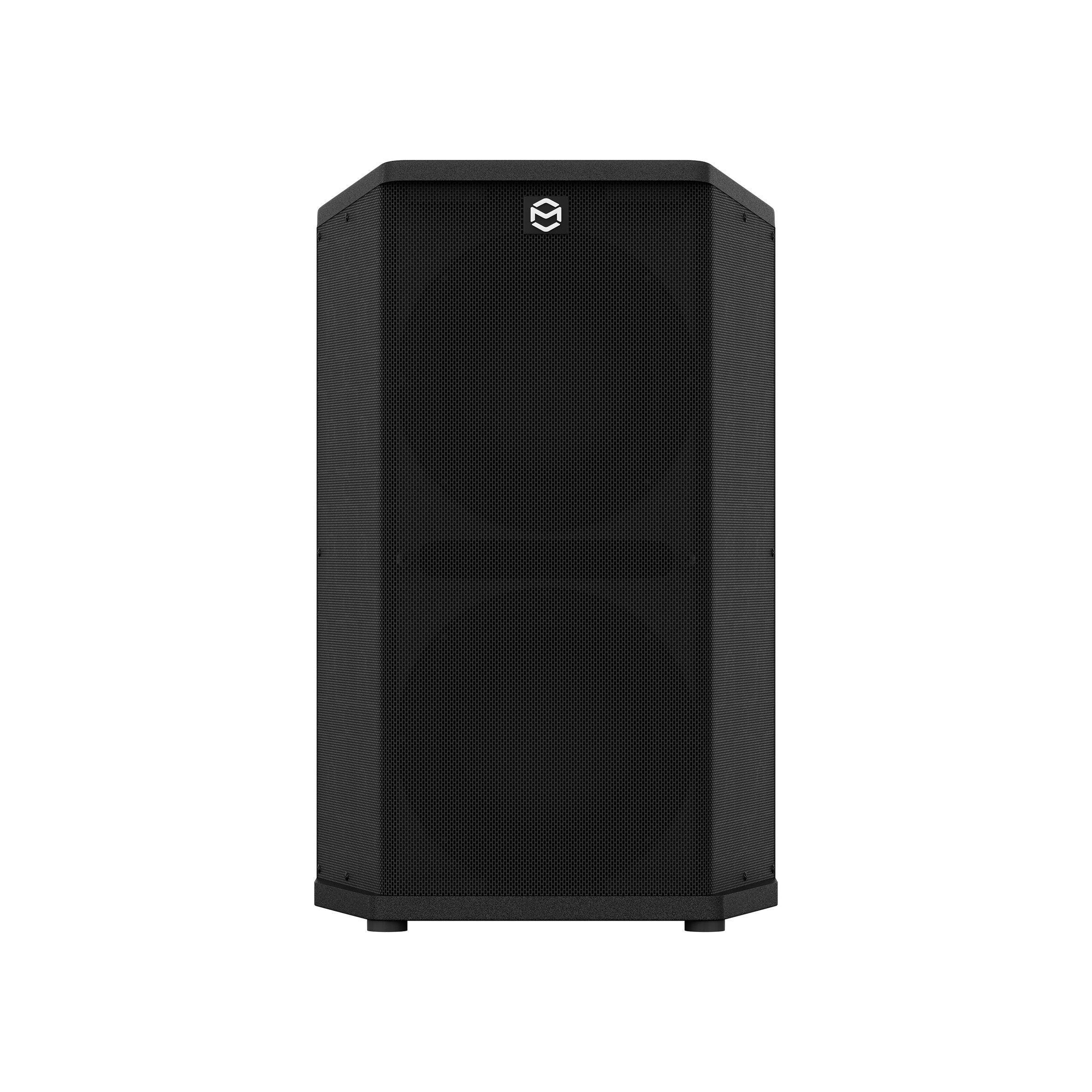

Musiccube-x1-portable-stage-subwoofer-main-product

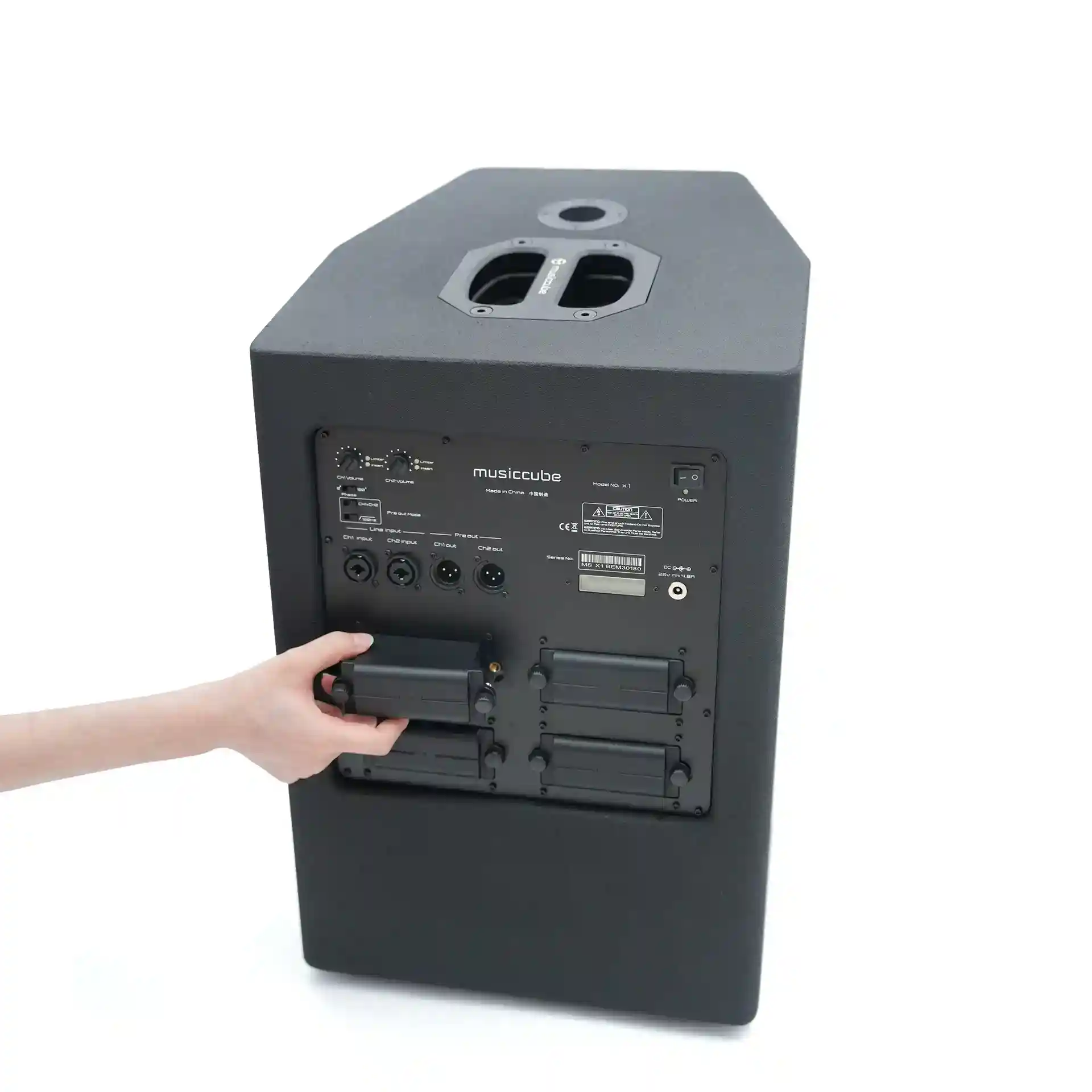

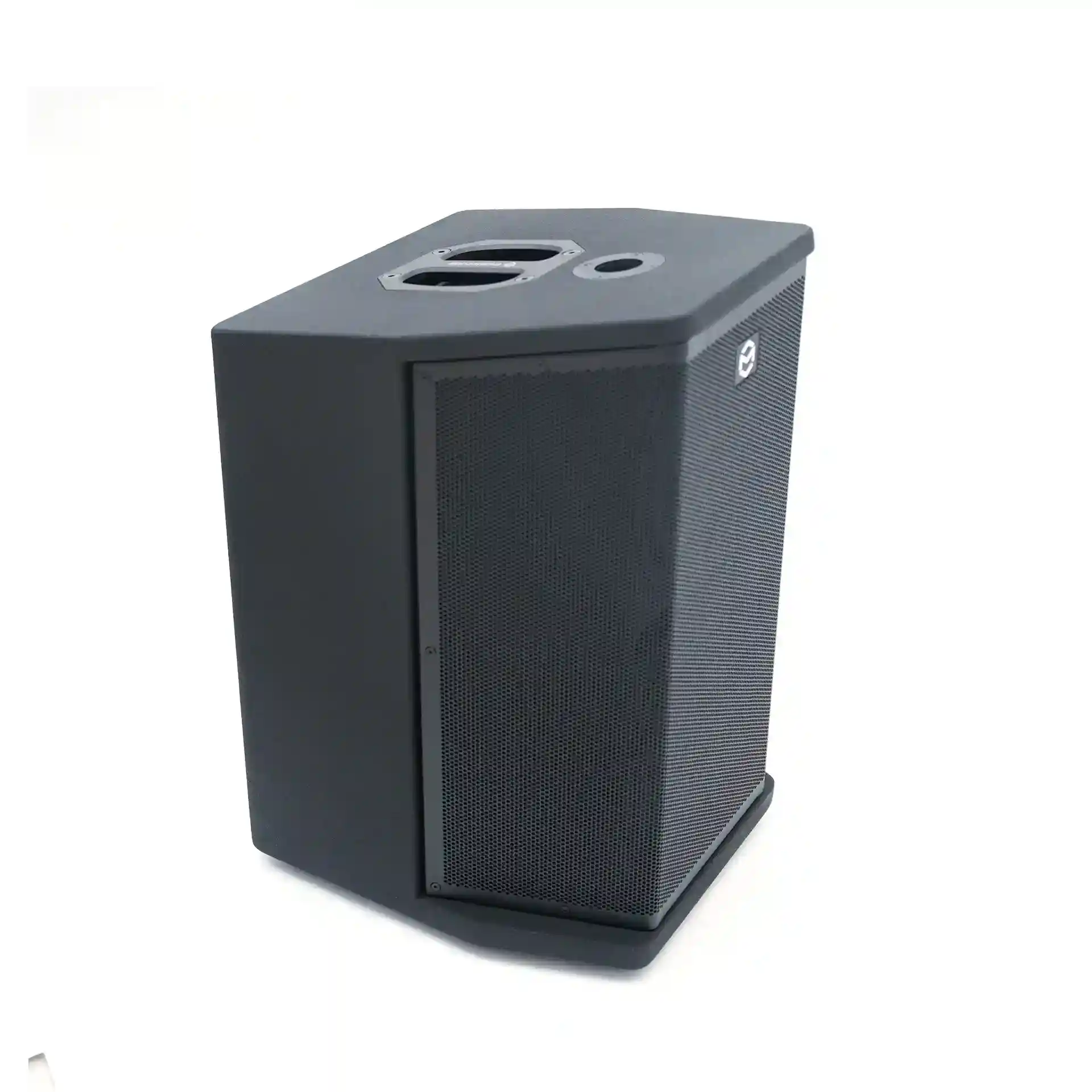

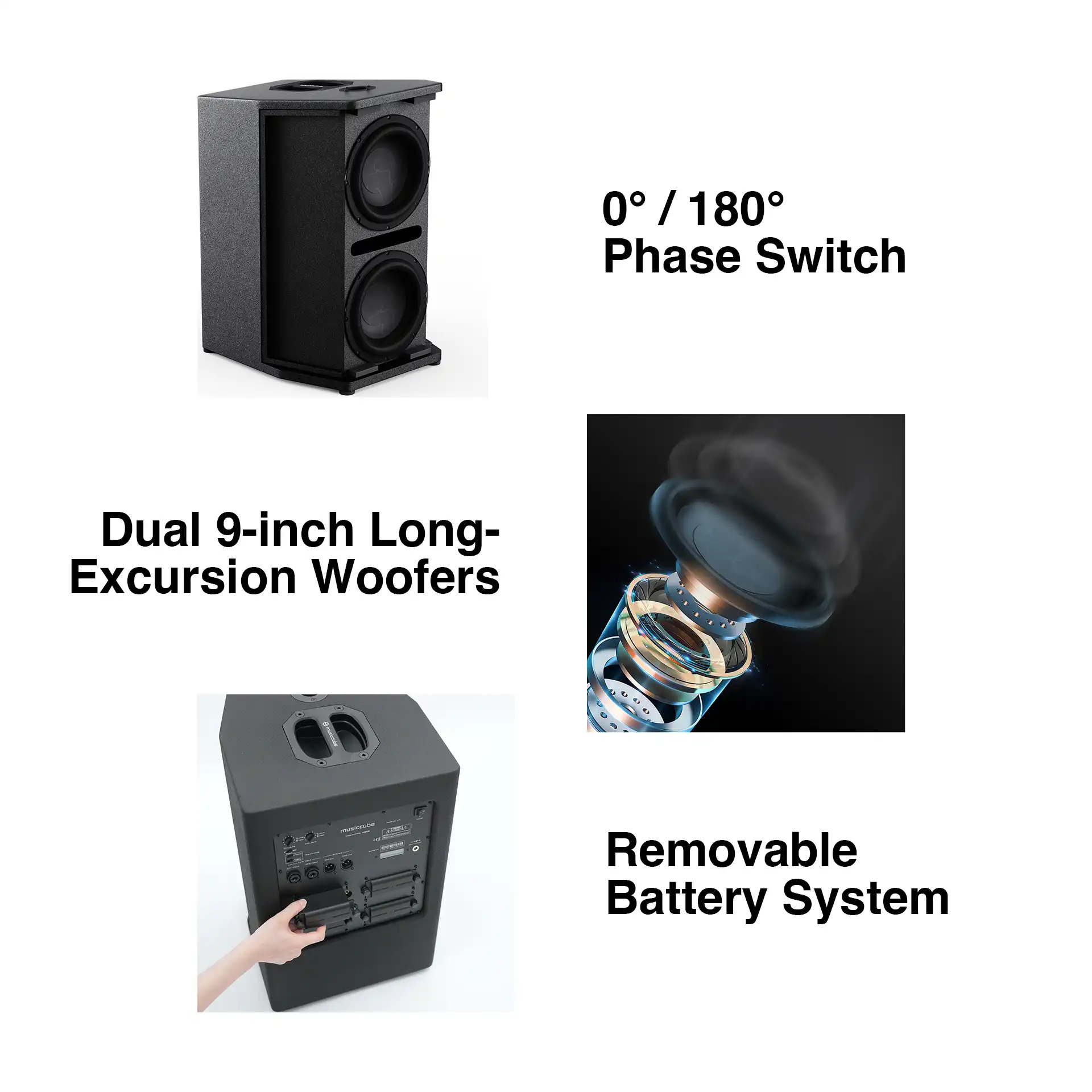

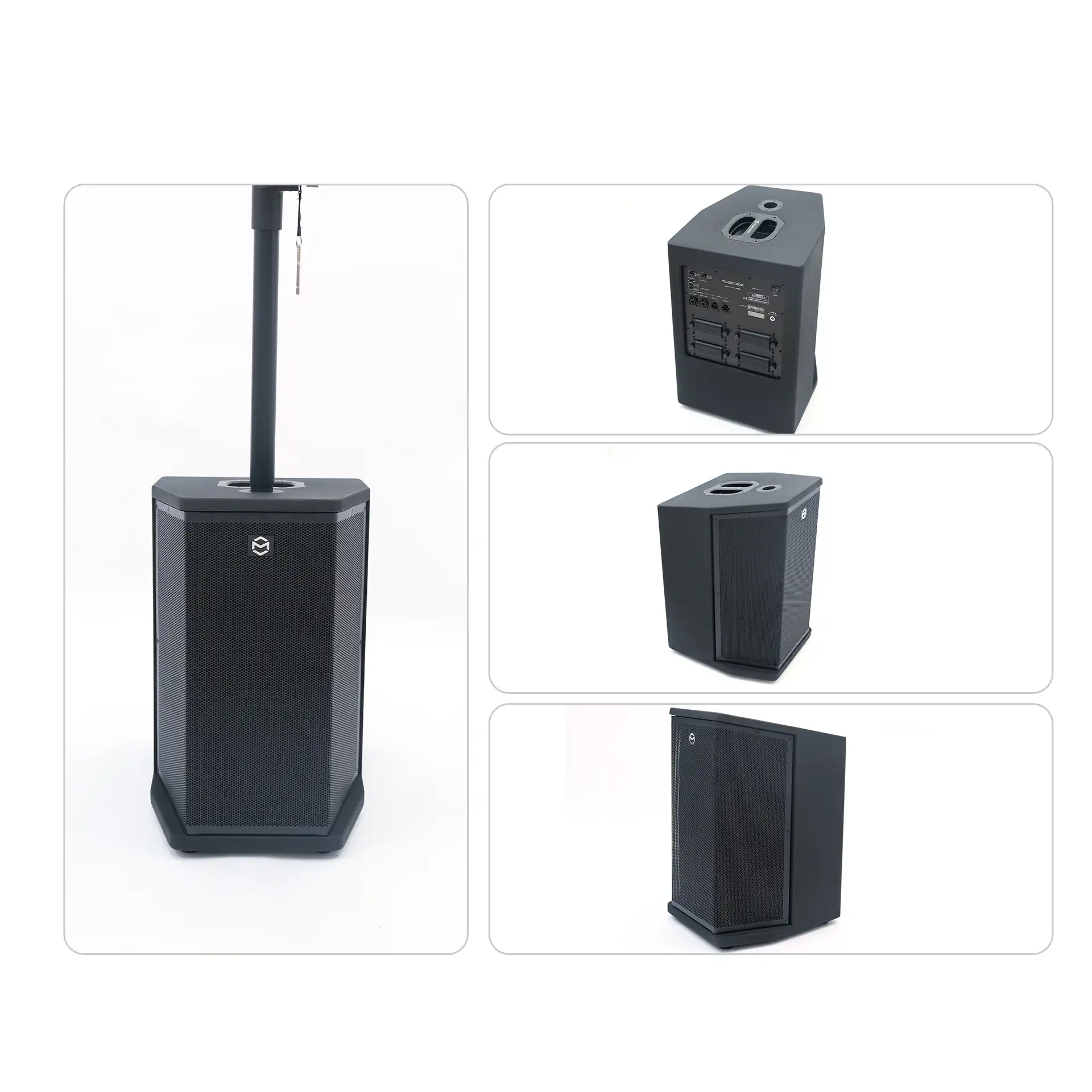

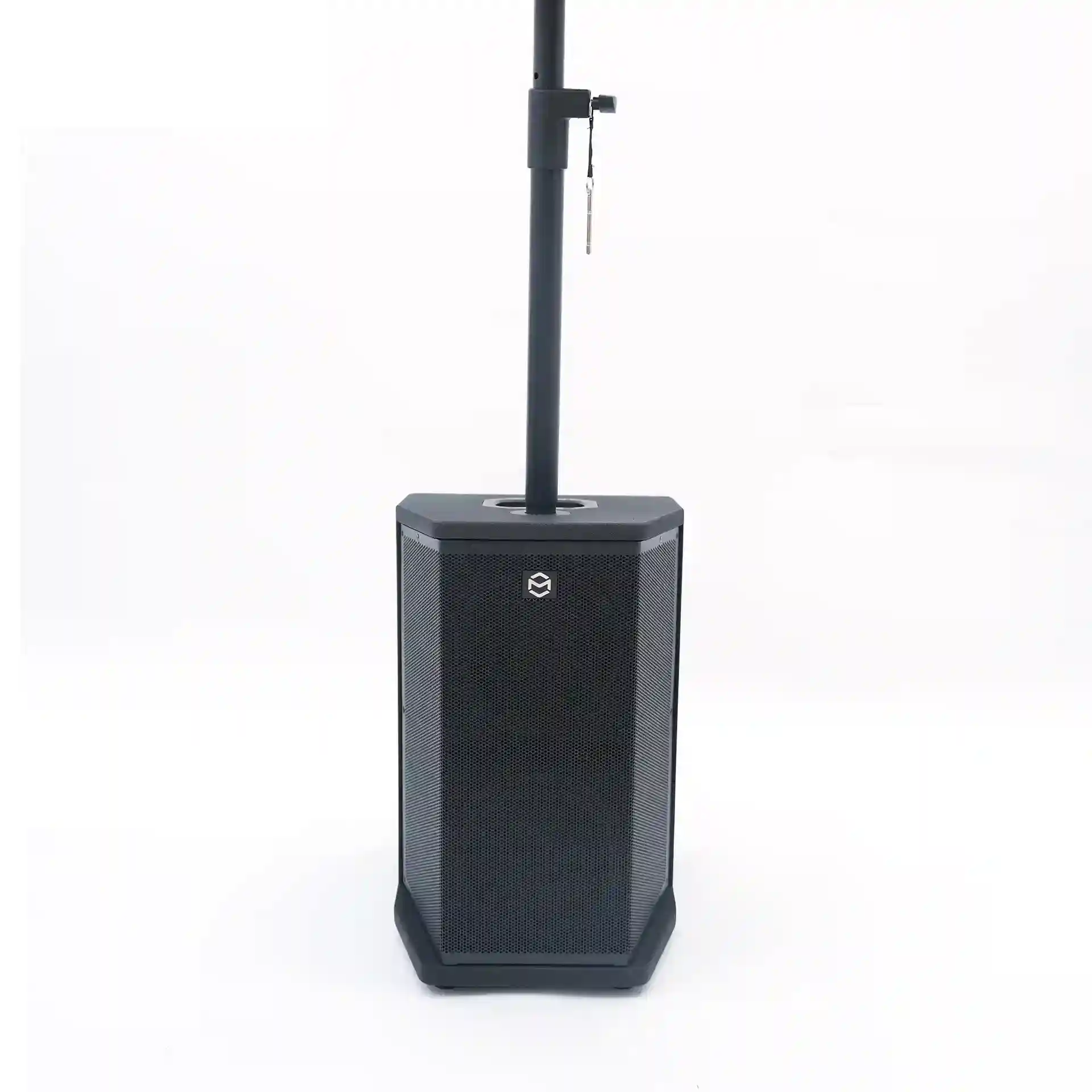

The X1 is a compact active subwoofer with two built-in 9-inch long-stroke woofers, rated at 320W, battery-powered and hot-swappable, suitable for various indoor and outdoor performance scenarios. It adopts a dual-chamber symmetrical structure and a dedicated airflow guide hole design, enhancing low-frequency dynamic range and diving capability, achieving response times as low as 40Hz. Equipped with dual-channel inputs and optional high-pass/full-range outputs, supporting independent or mixed-signal outputs, and equipped with a 0°/180° phase switching switch for easy coordination with the main speakers. The entire device integrates a retractable stand and ergonomic handles, balancing portability with flexible system expansion.
Product features
- Professional subwoofer system
- Flexible input/output

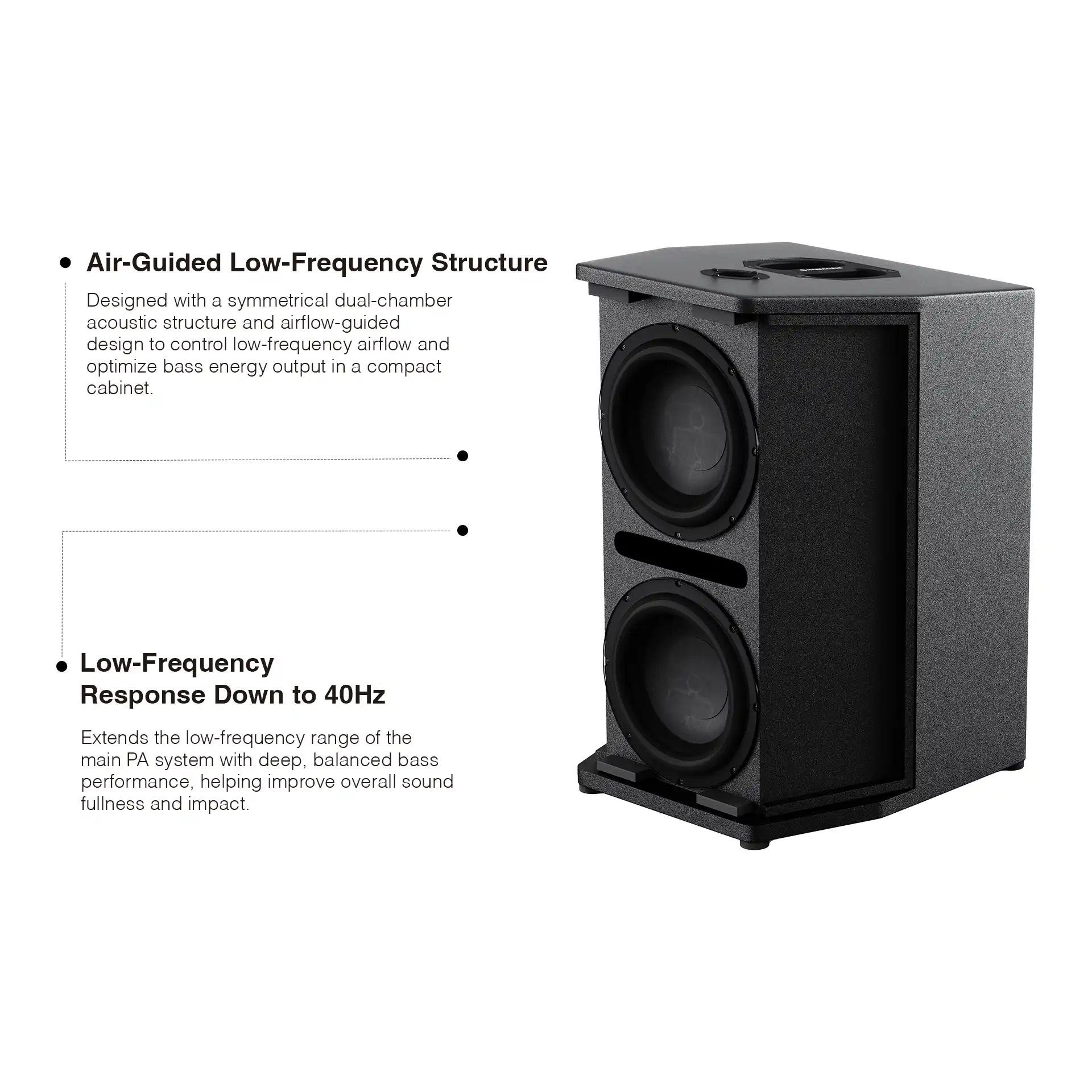

- Symmetrical structure of the double chamber

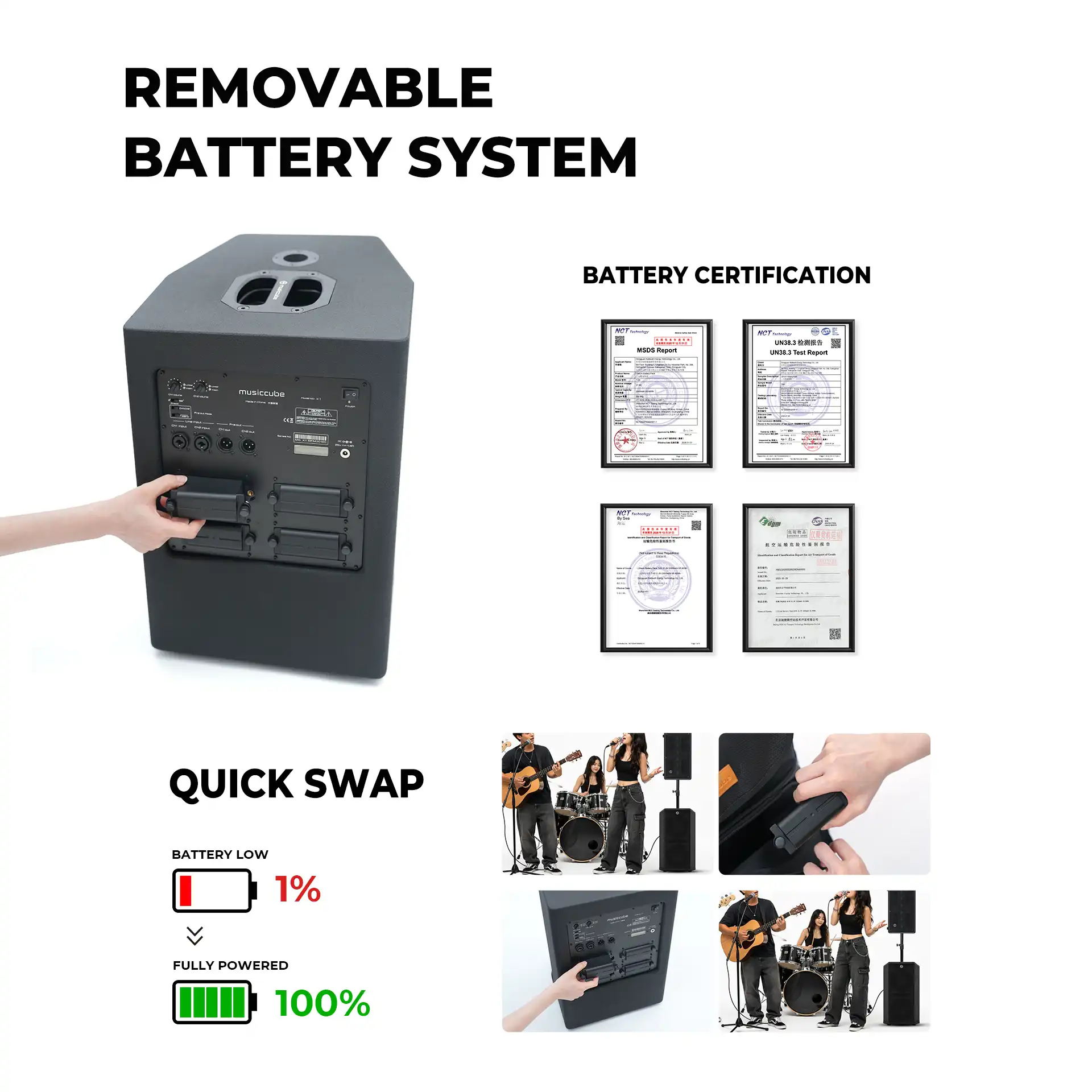

- Breaks the limitations of scenario battery power supply technology
- Low-frequency response capability:Lowered to 40Hz, enhancing low-frequency extension
- Structure and Output System:Dual 9-inch long-stroke units × 320W power output

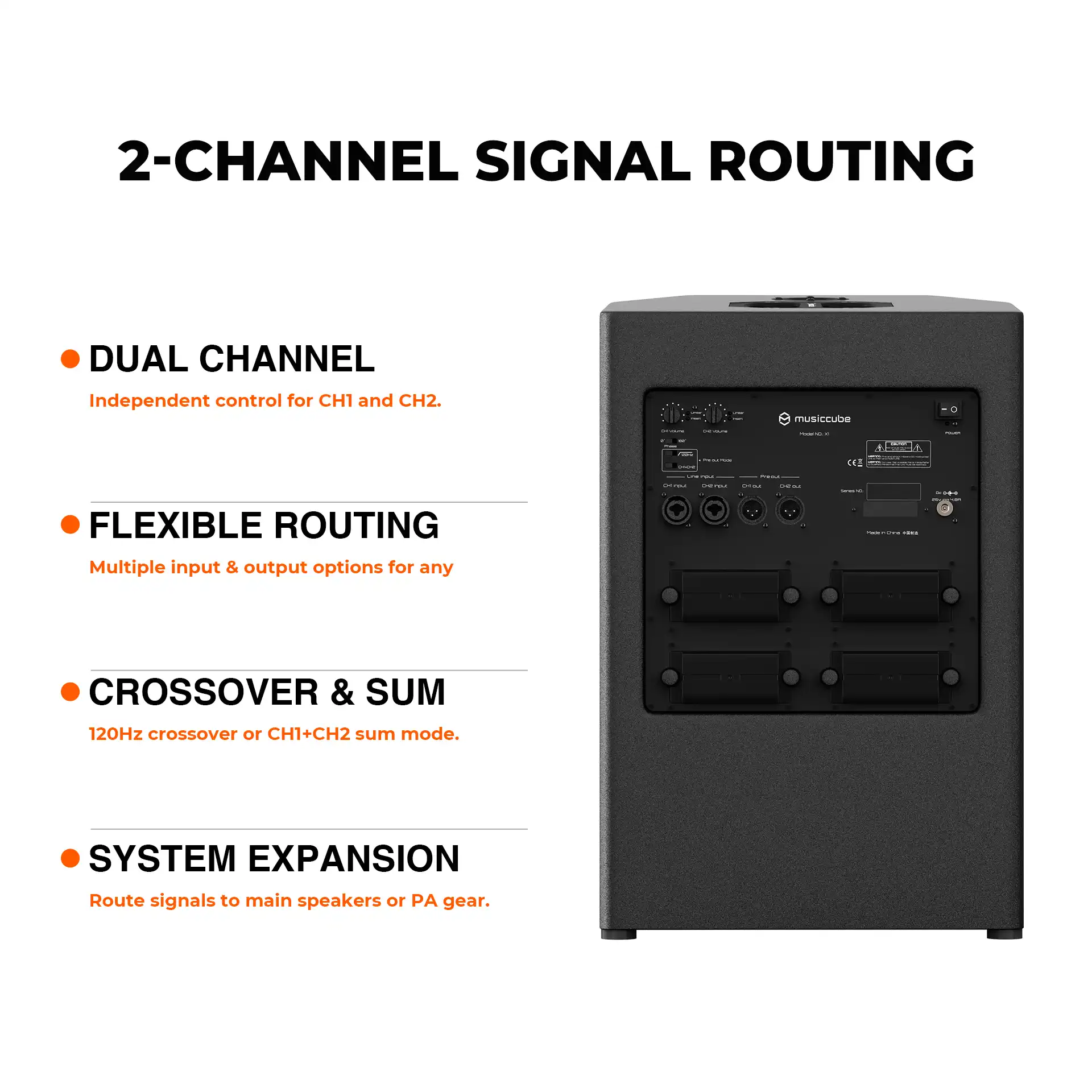

- System Connectivity and Management:Dual-channel input/output · Phase Adjustment · Multi-mode signal management
Technical specifications
| Project | Parameters |
|---|---|
| Model | X1 |
| Power | 320W |
| Frequency response range | 40Hz-150Hz |
| Crossover frequency | 40-150Hz bandpass filter 100Hz fourth-order high-pass filter (line output). |
| Speaker unit | 9-inch long-stroke unit ×2 |

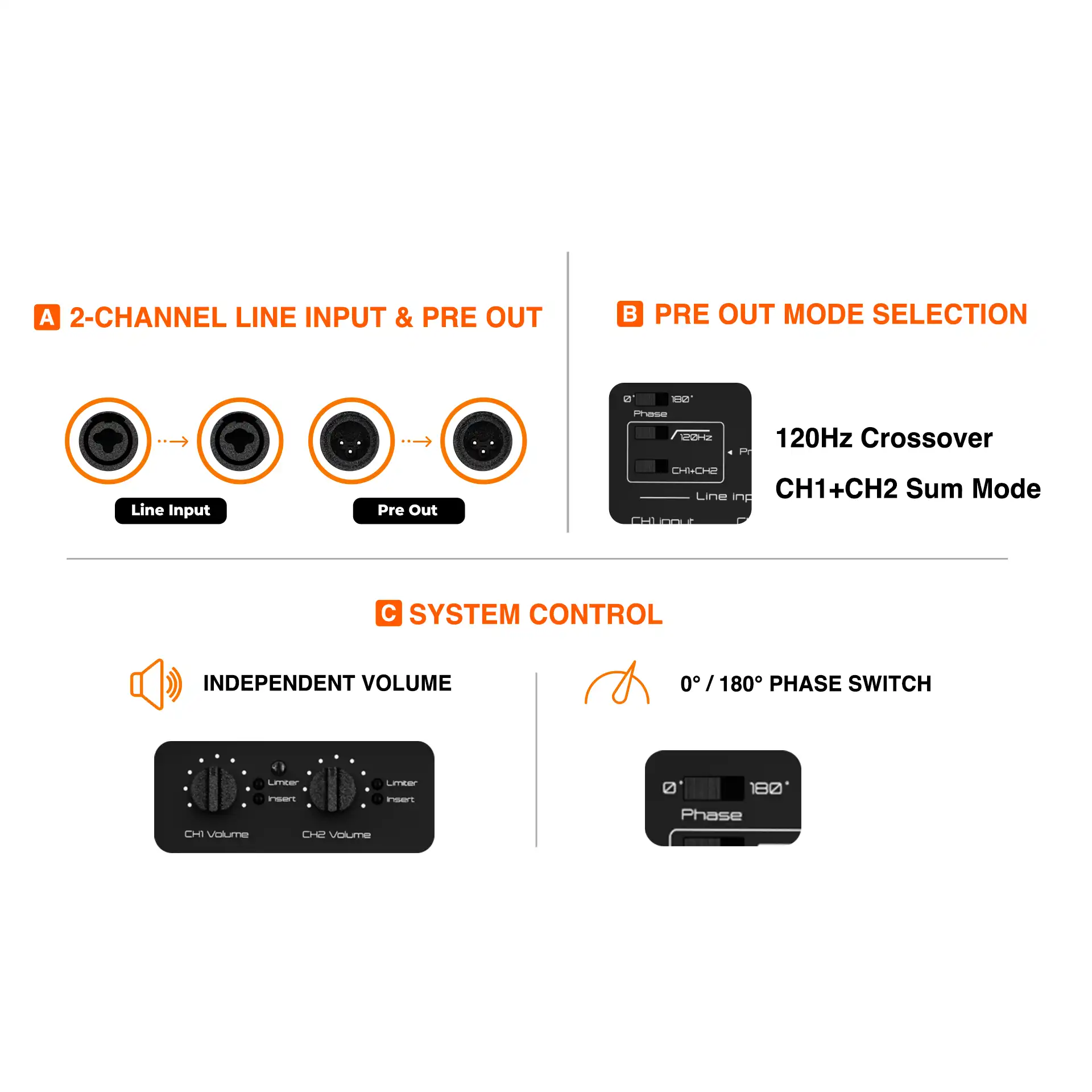

| Control | Volume / Power switch / Polarity selection / Line input EQ |
| Input | 2-channel input (XLR universal interface) |
| Output | 2-channel XLR balanced interface |
| Size (mm) | 350×373×543 |
| Net weight (kg) | 15 |
| Battery capacity | 2550mAh ×4 |
| Power supply | AC: 200V (powered by power) DC: 26V–4.8A (built-in battery) |
| Battery life | 4-6 hours |
Product Details
