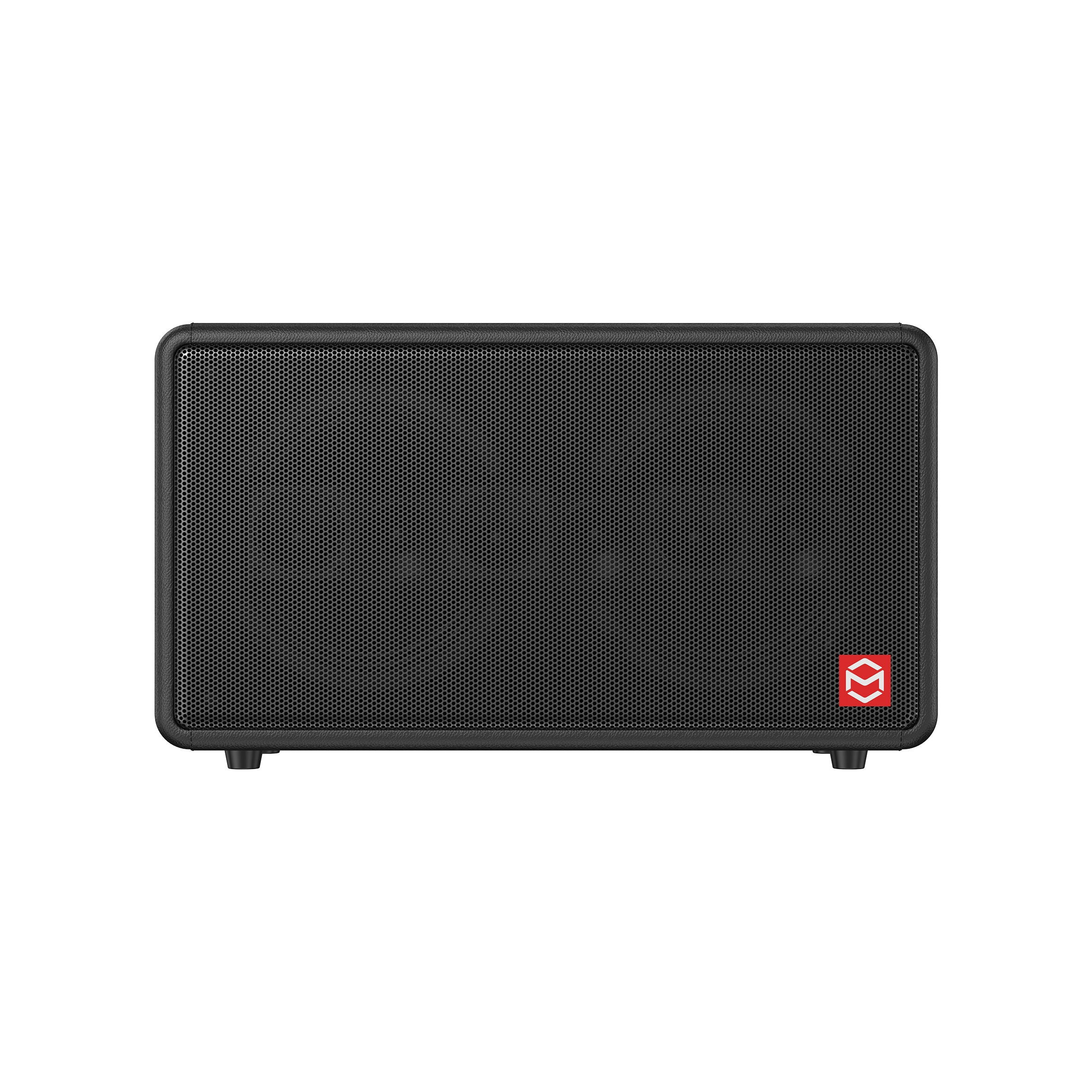

Musiccube-t2pro-busking-portable-pa-speaker-main-product

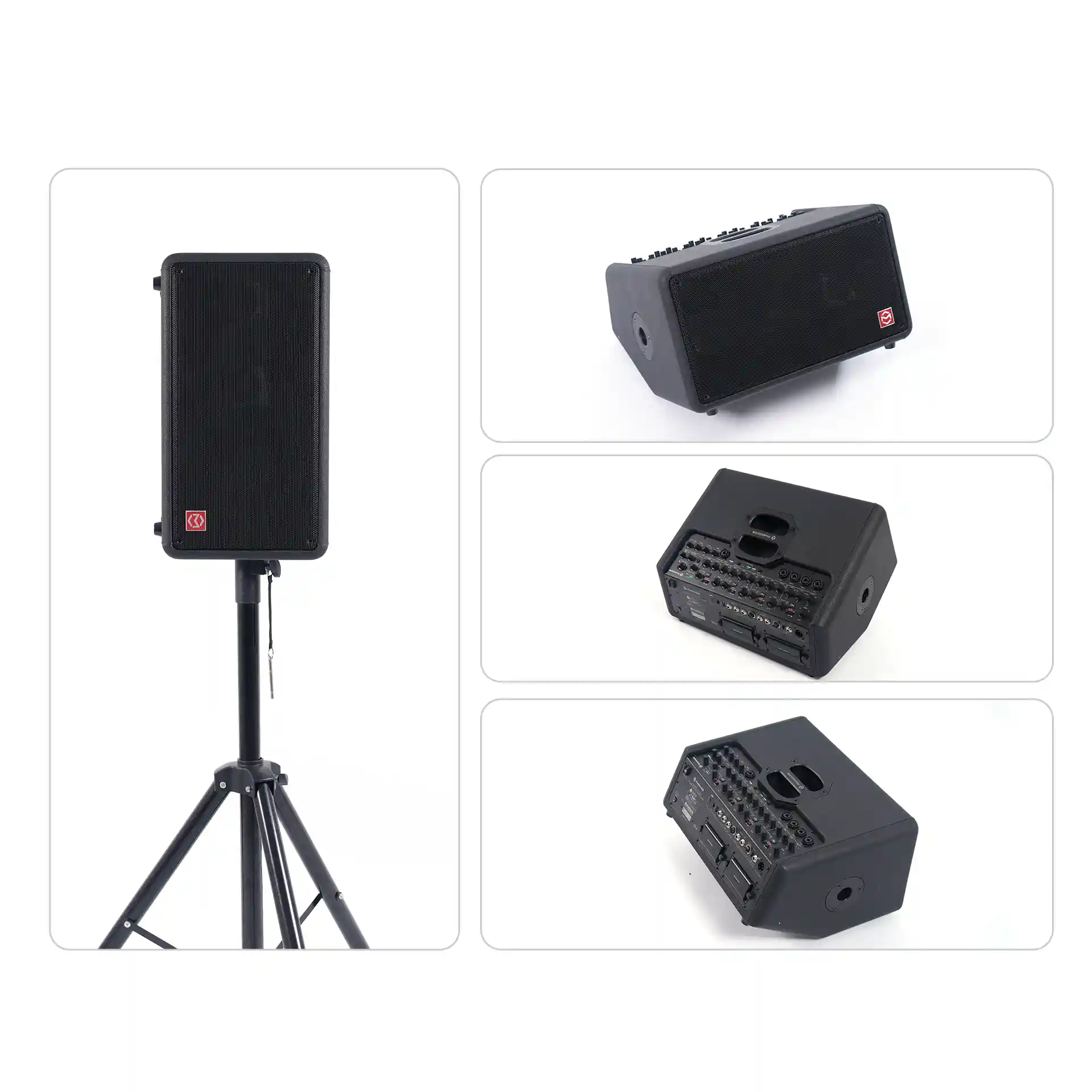

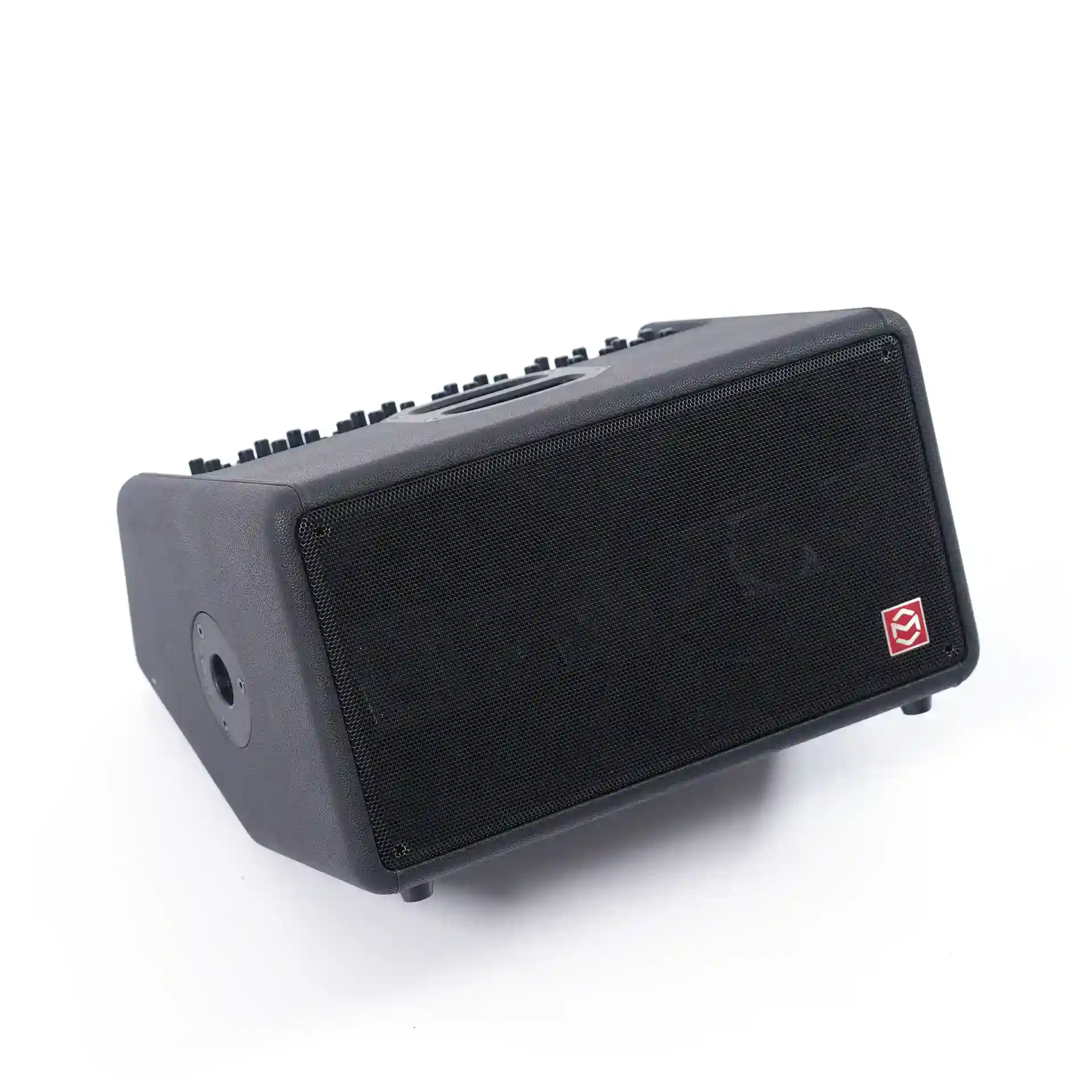

The Musiccube T2 Pro is an integrated portable line array speaker designed for live performance scenarios, with a rated output power of 480W, peak power of 700W, and a weight of 13.1kg. The device offers five independent input channels, supporting microphone, electric guitar, acoustic guitar, and other sound sources, meeting the needs of solo multi-instrument or multi-person collaboration. In terms of acoustic structure, the T2 Pro uses a C-shaped linear array tweeter articulated arrangement, achieving approximately 180° horizontal coverage and optimized vertical diffusion; The bass section consists of two 8-inch neodymium magnetic woofers, capable of dropping down to 50Hz, balancing compact size with effective bass response. The overall design aims to provide clear and consistent soundstage coverage for street performances, small outdoor gigs, and similar scenarios.

Product features

  •  High-power portable sound reinforcement system
  • Linear array acoustic technology
  • Hidden independent playback
  • Intelligent power supply management system

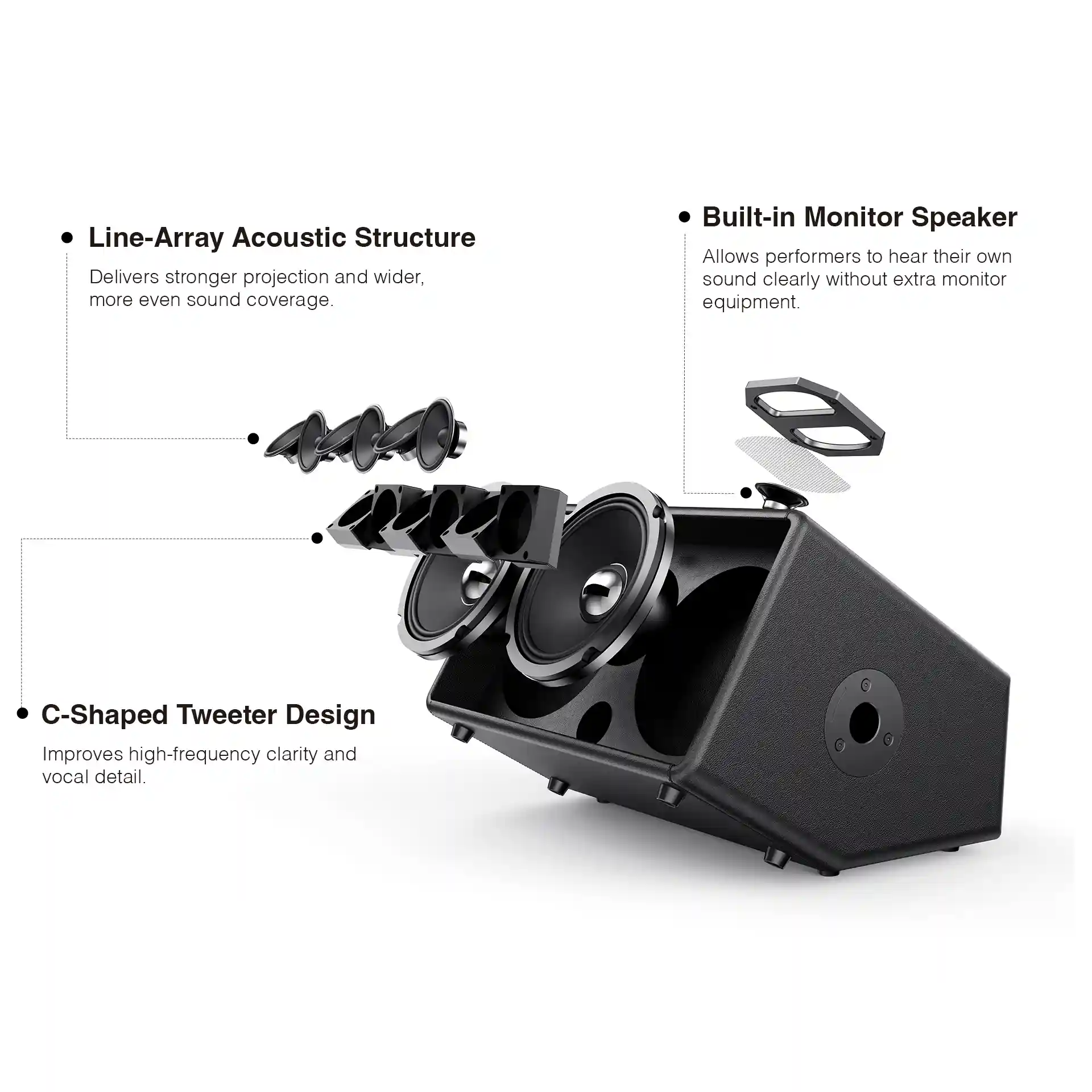

  • Acoustic system:C-shaped linear array tweeter structure achieves wide coverage and a balanced soundstage
  • Amplifier and crossover system:Class D independent bass and treble amplifier architecture combined with active electronic crossovers
  • Application Capabilities:Supports multi-channel input and stereo expansion to meet performance, sound reinforcement, and multi-device access needs
  •

Technical specifications

ProjectParameters
ModelT2 Pro

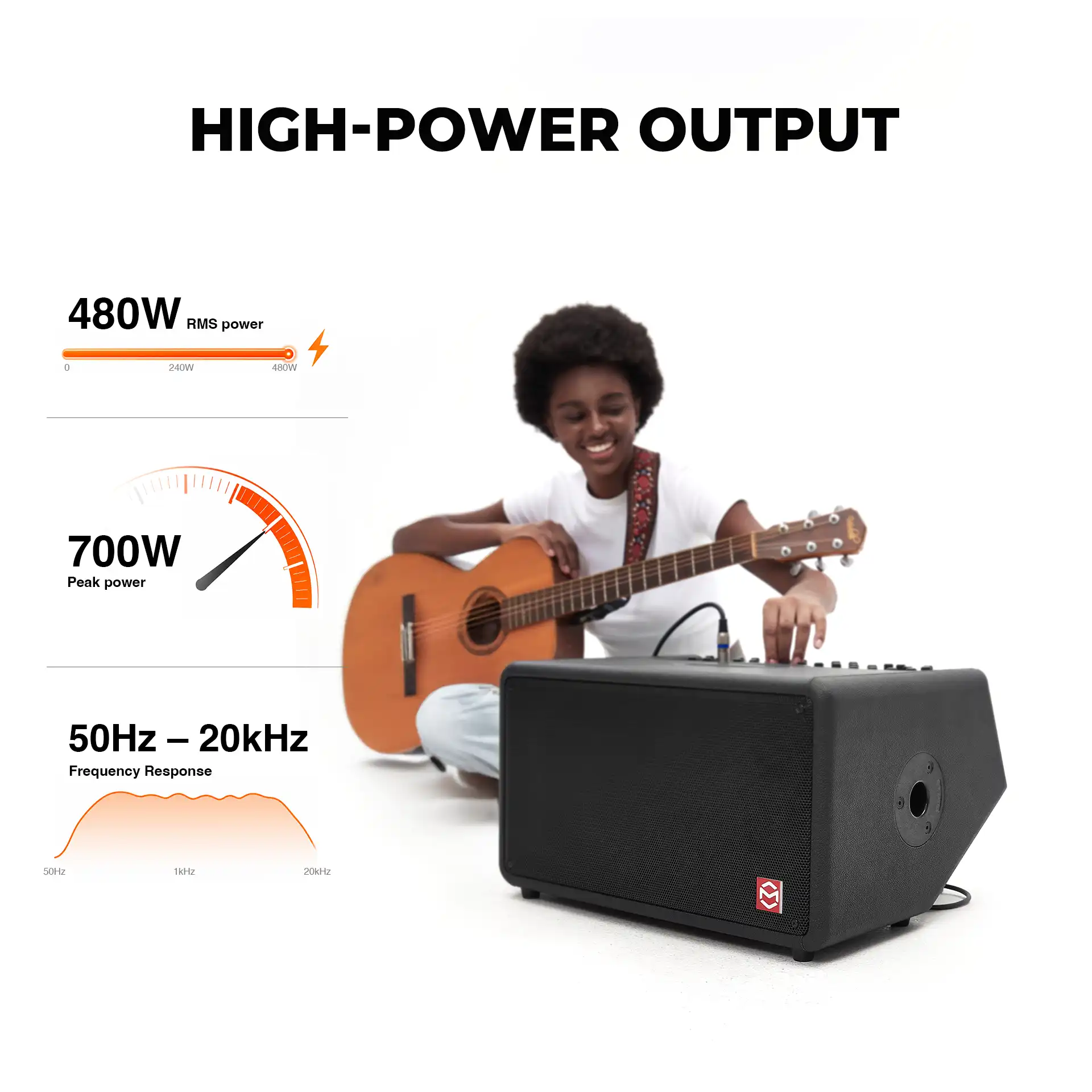

PowerRated power 480W / peak power 700W
Frequency response range50Hz-20kHz

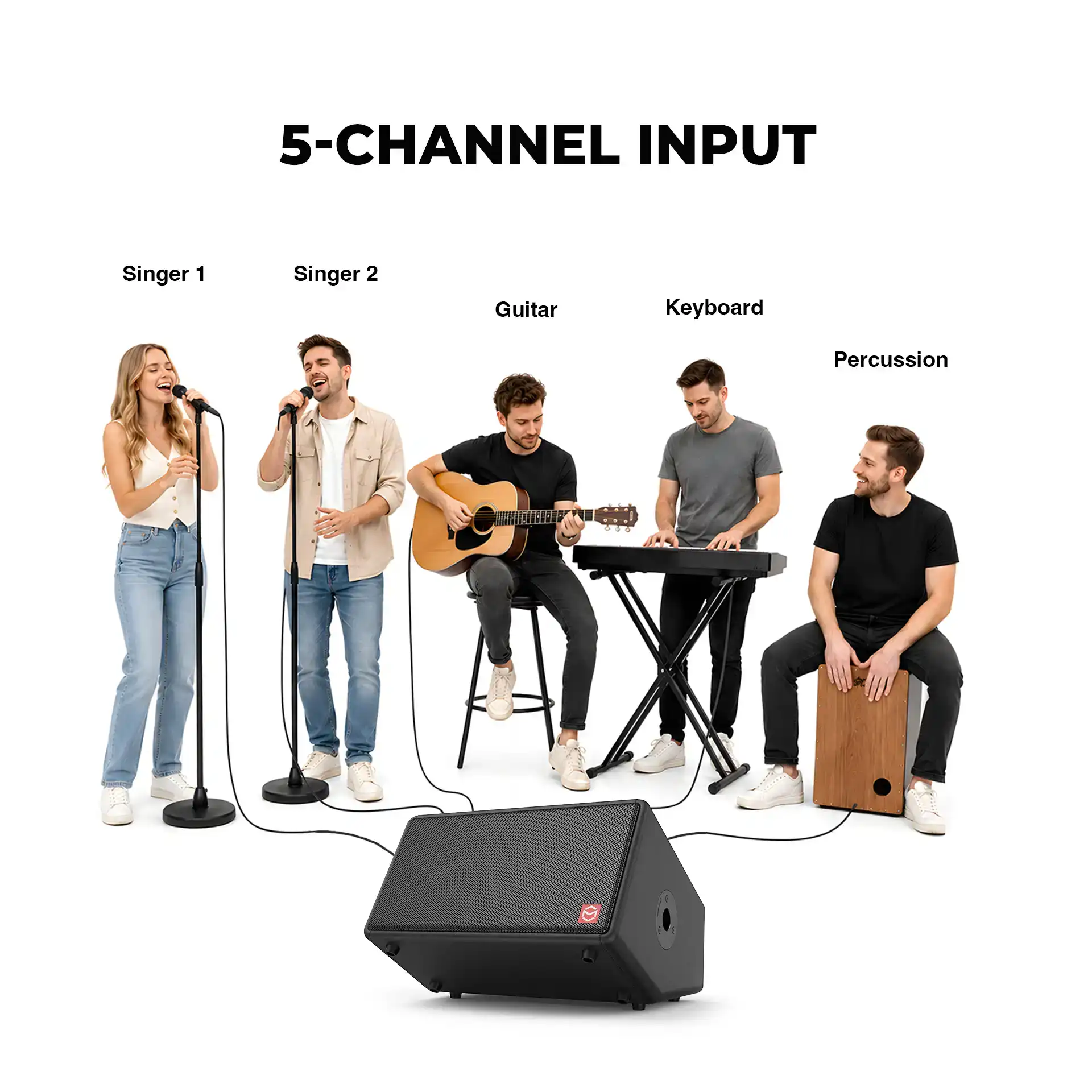

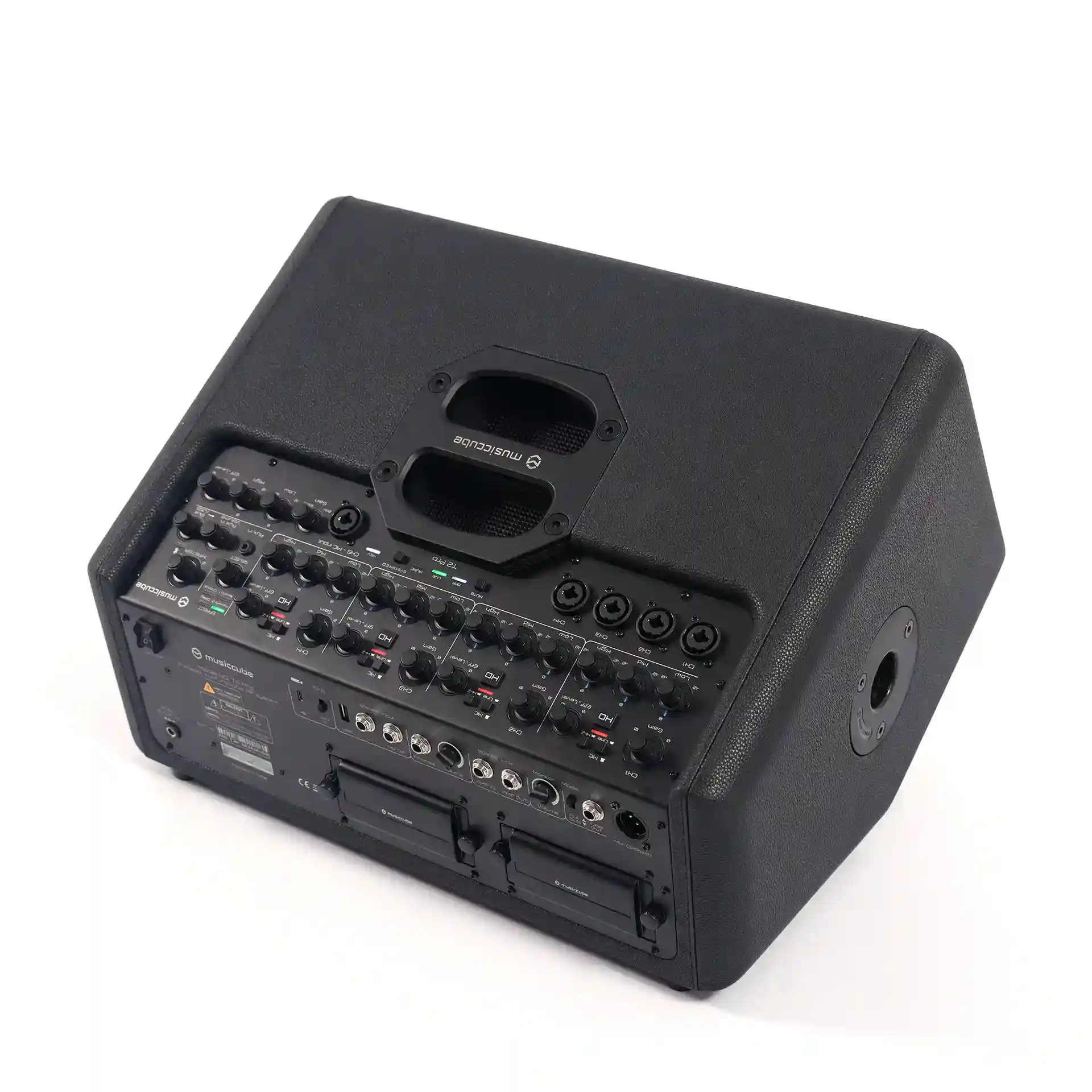

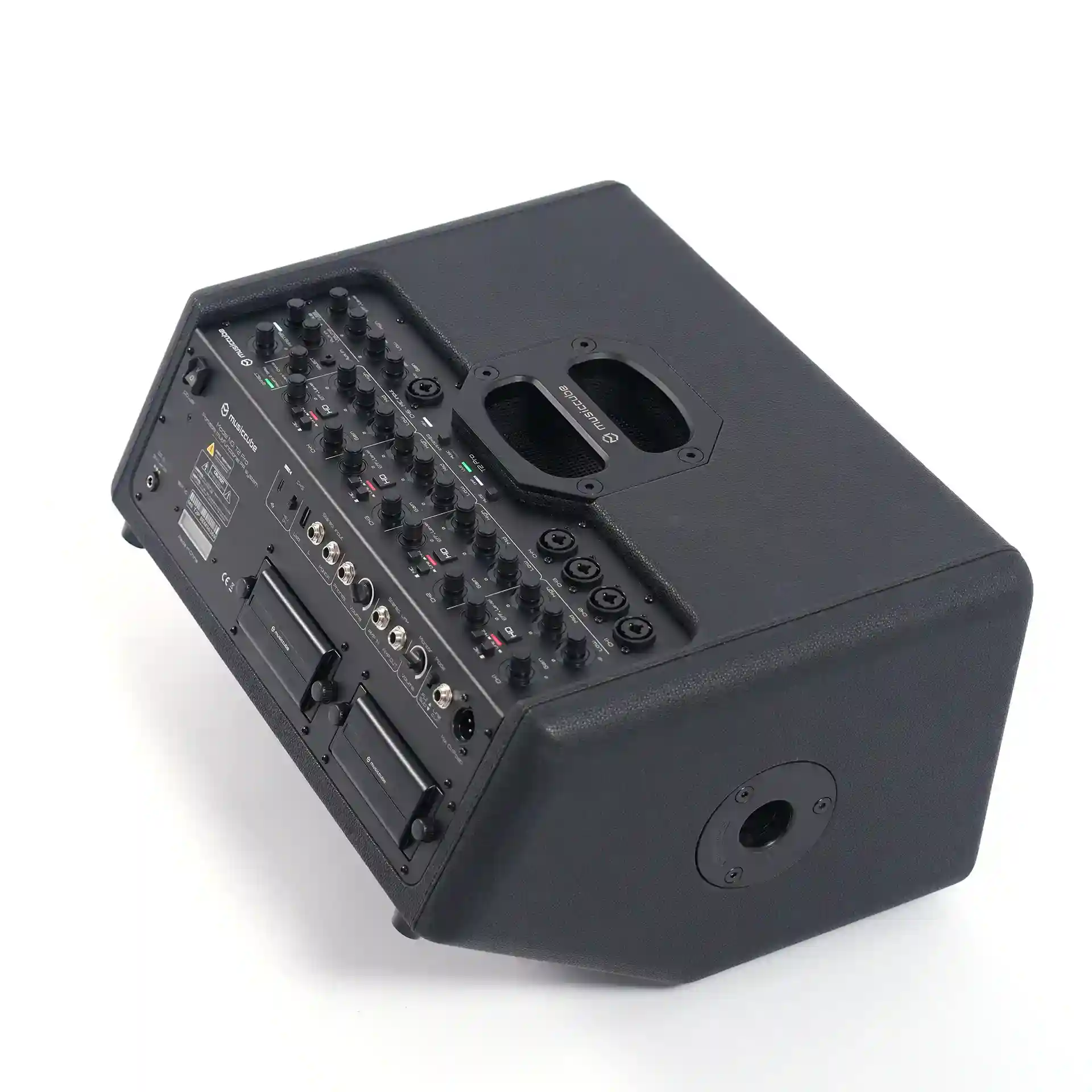

Audio inputMicrophone/Line Input: × 4
Microphone × 1
Stereo line input × 1
AUX IN 3.5mm audio input × 1
Bluetooth input × 1
USB input × 1

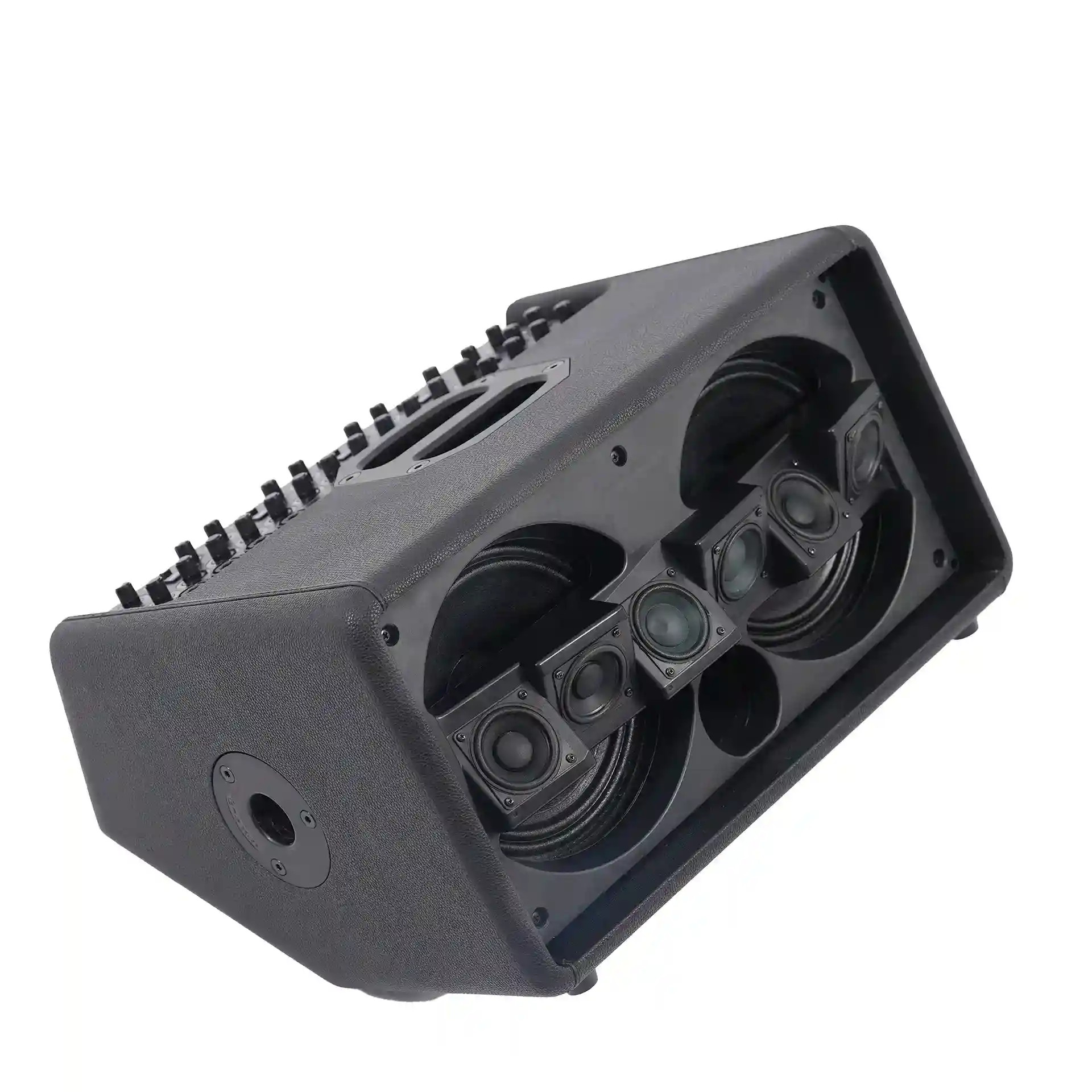

Speaker unit8-inch low-frequency unit × 2
2-inch mid-to-high frequency unit ×6
3-inch mid-high frequency unit ×1 (playback)

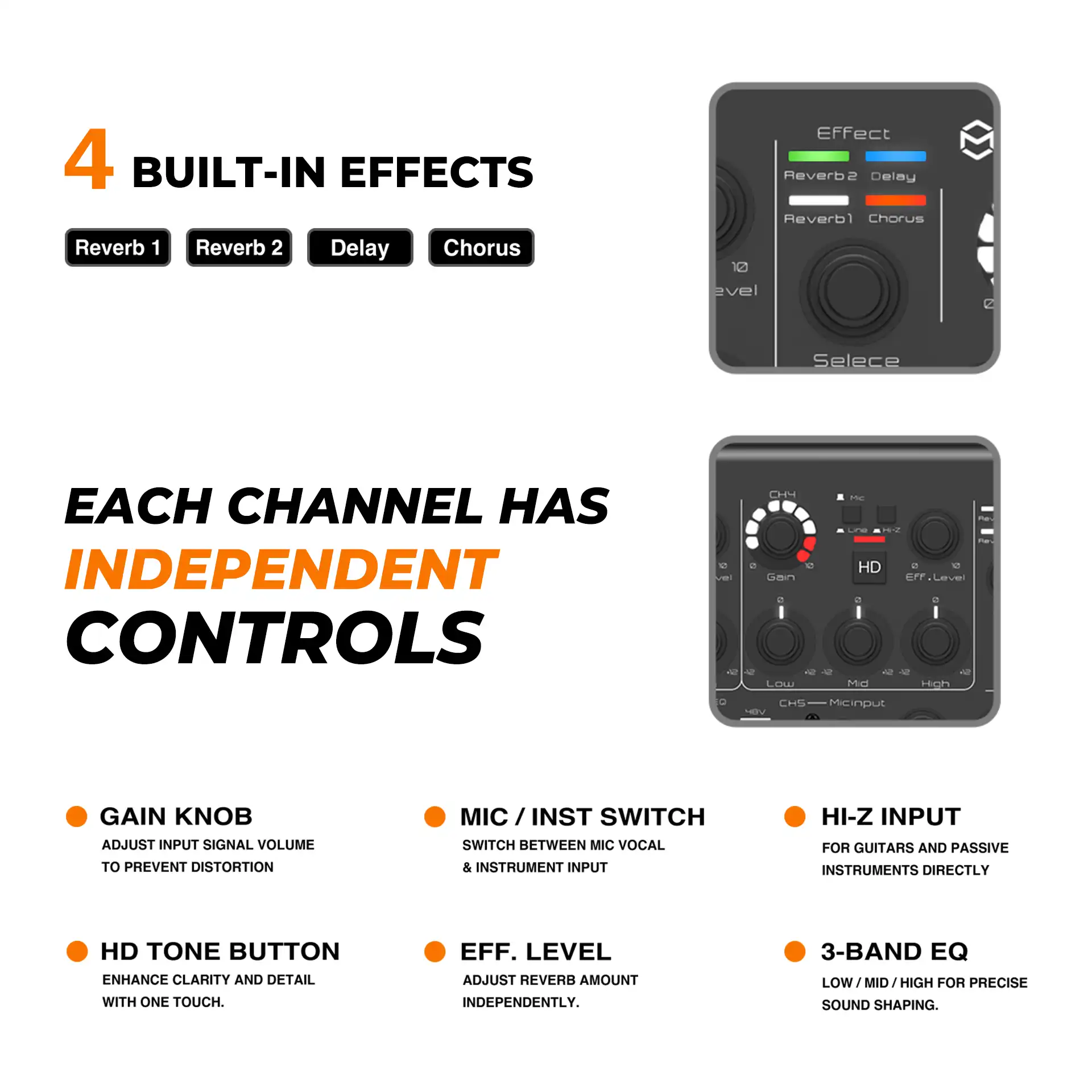

Effects pedalLobby / Concert Hall / Delayed / Choir
Other featuresOTG live recording / 48V Phantom power supply / balanced output / headphone monitoring / line output / stereo series connection
Preset modeSilent mode / Performance mode / Music mode
Size (mm)485×390×265
Net weight (kg)13.1

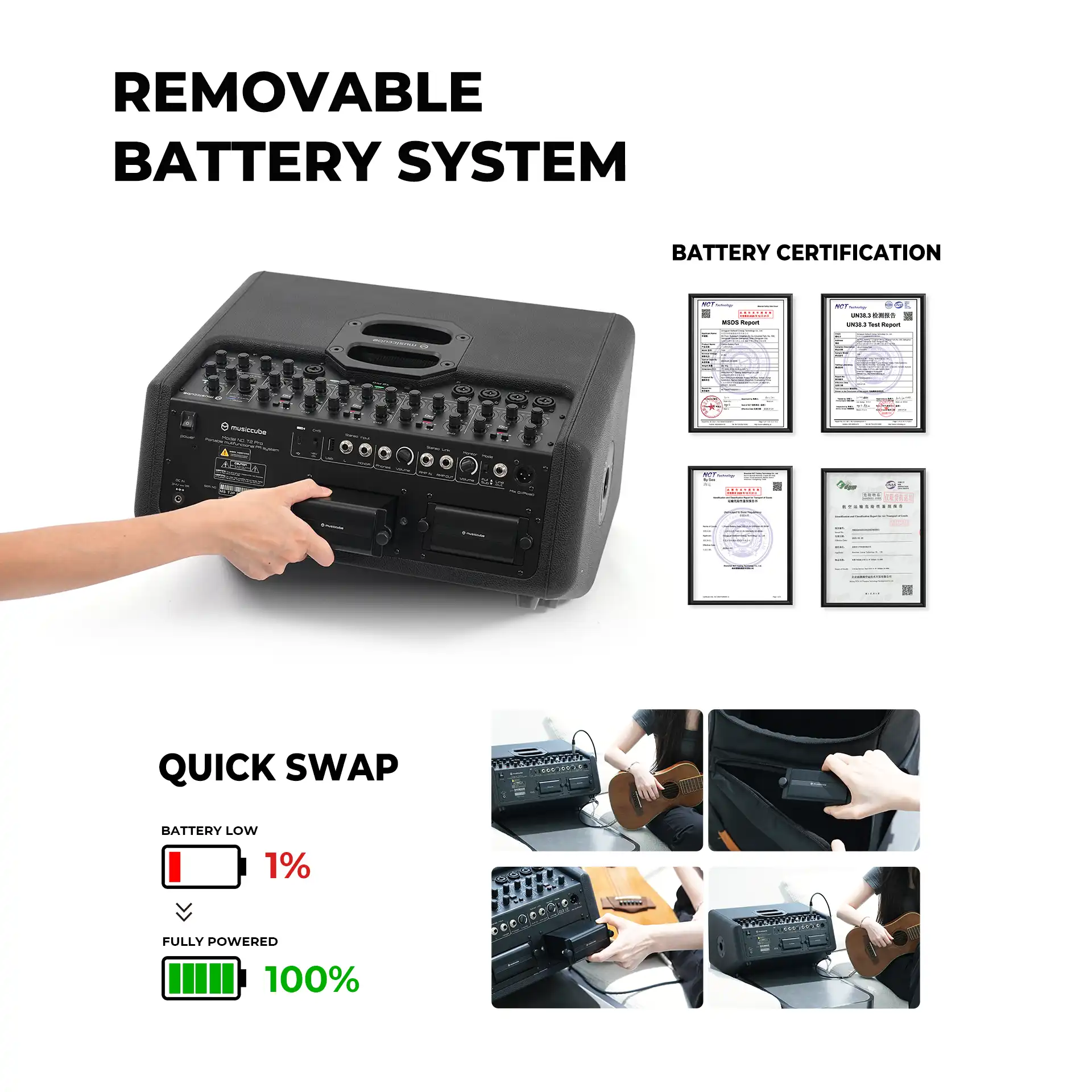

Battery capacity4850mAh × 2
Power supplyAC:100V–240V (powered by power supply)
DC: 34V–7A (built-in battery)
Battery life4-6 hours
